Ocoee House Plan

$1,386.00

Living Space: 2256 Square Feet
Bedrooms: 2 Bedrooms
Full Baths: 2 Baths
Half Baths: 1 Half Bath
Parking: 2 Parking Spaces
Construction: Wood Framing
Files Included: PDF, CAD (.dwg), Sketchup Pro (.layout)
SKU: THP059 Categories: , Tags: ,

The Ocoee House Plan.

Ocoee is a modern home designed to fully use a sloping lot, and provide many outdoor living spaces.




2256 Square Feet

First Floor 1185 s.f.
Second Floor 396 s.f.
Porches 392 s.f.
Garage 0 s.f.
Under Roof 1973 s.f.


2 Bedrooms


3 Baths

2 Full Baths
1 Half Bath




2 Parking Spaces


10 Foot Ceilings


House Size

27′ wide
62′ deep (without stairs)
33′ high


Awards

In 2008, this plan was featured on Houseplans.com as the cover plan for Contemporary House Plans and Modern House Plans, and was featured in the San Francisco Chronicle. In 2007, this plan was featured on Houseplans.com as exclusive content.

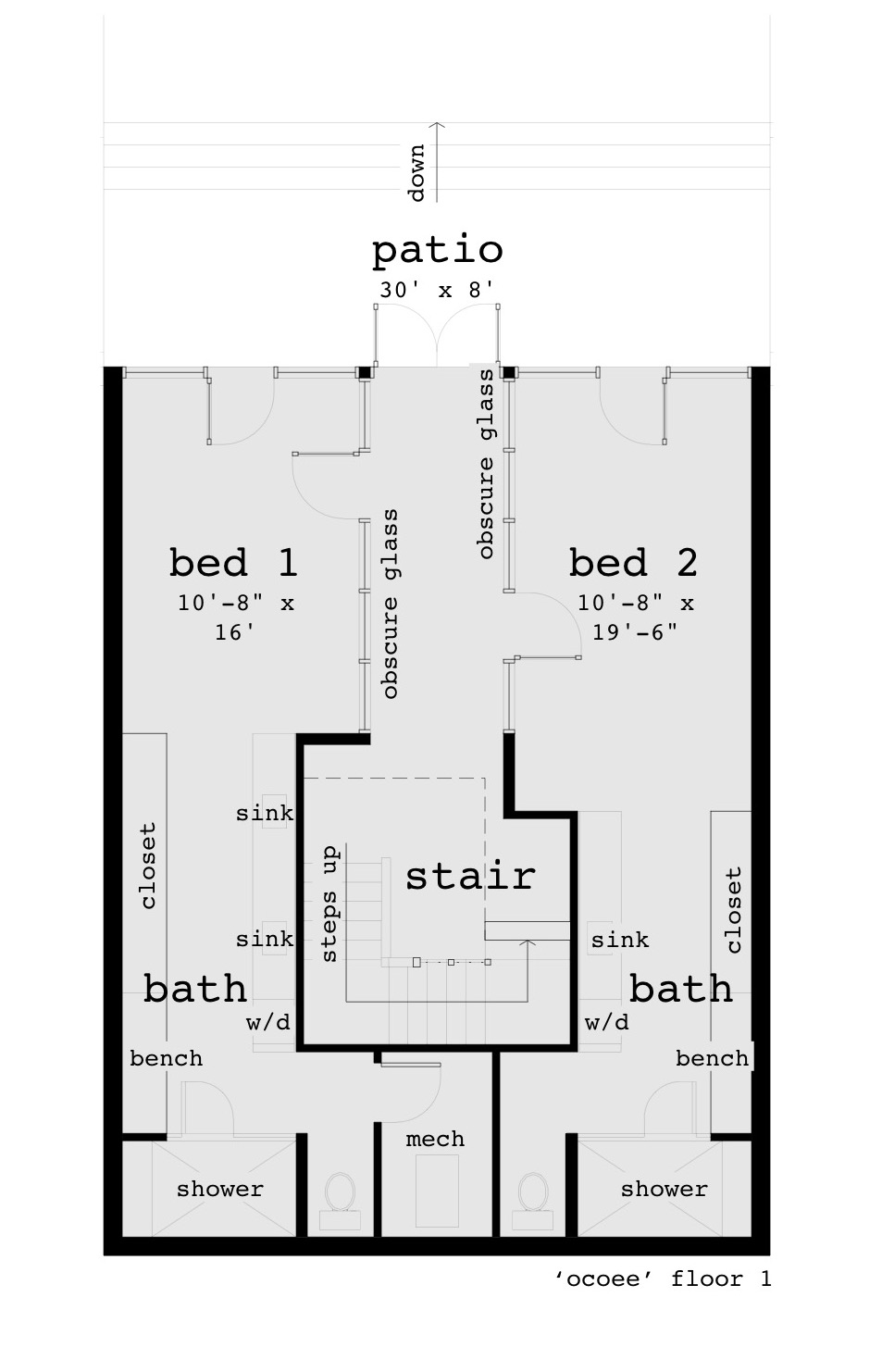

First Floor

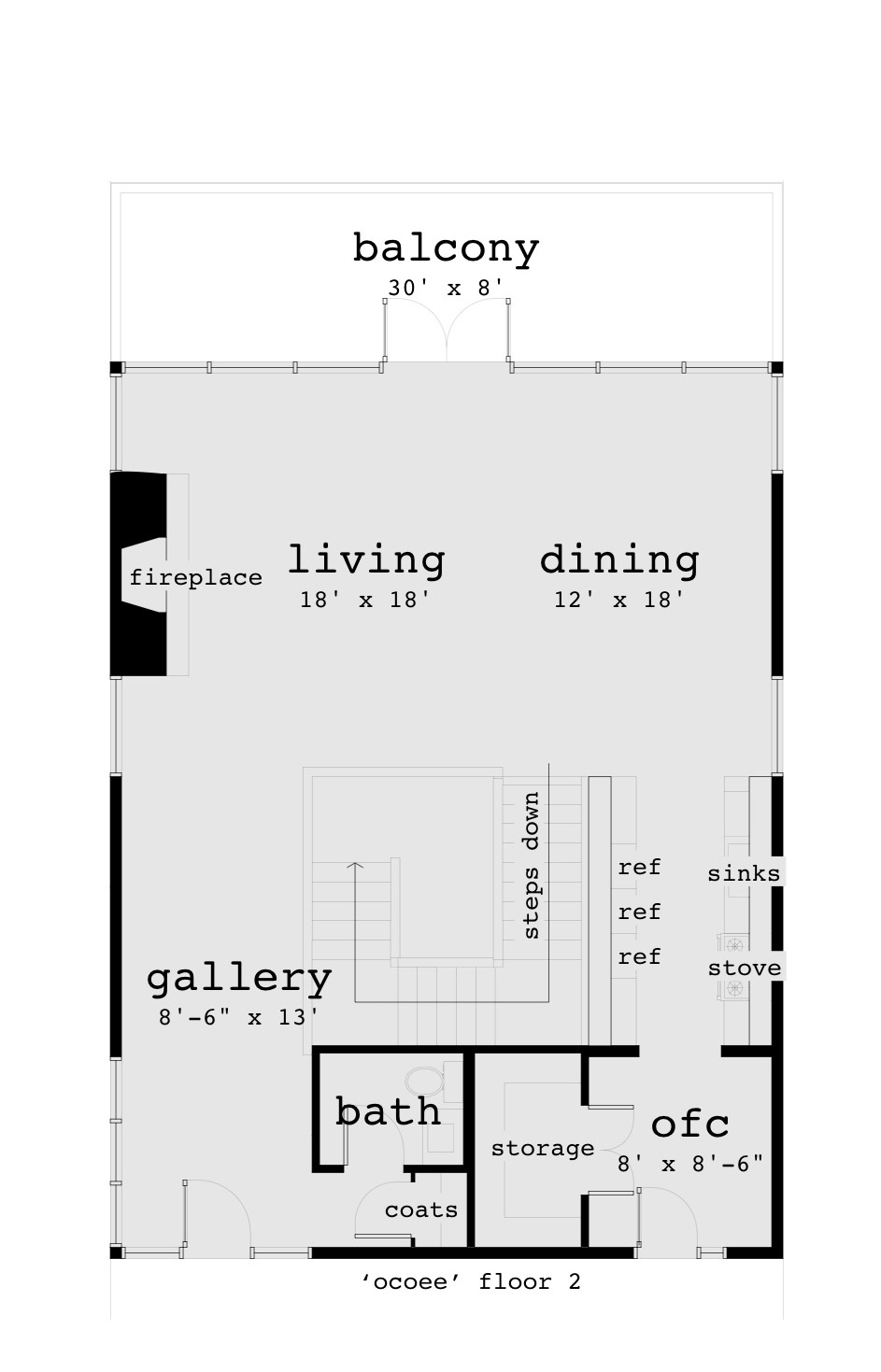

Second Floor

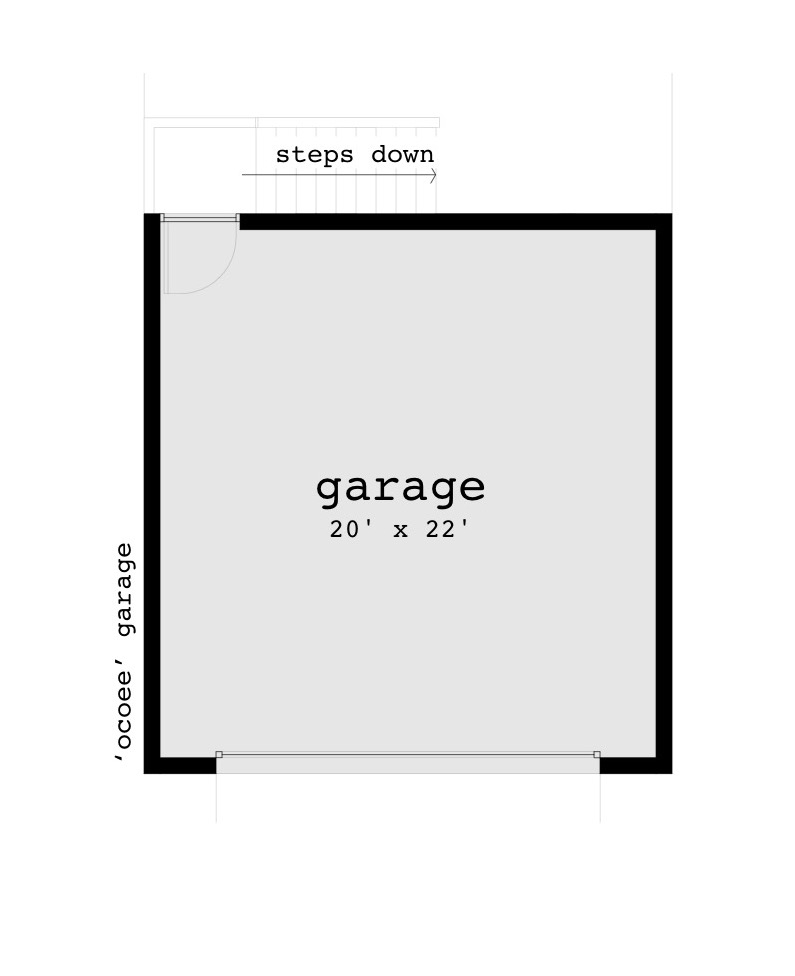

Garage


Foundation & Floor

This plan is designed with a concrete slab on grade at the garage. The second floor is pre-engineered wood trusses.


Wall Structures

The exterior walls are poured concrete at the basement level. The exterior walls are 2×6 wood framing at the upper level.


Roof Structure

The roof is standing-seam metal over a plywood deck, and pre-engineered wood trusses at a 2:12 pitch.


Exterior Finishes

The exterior is finished with stone, stucco and cable railing.


Doors & Windows

Modern doors and windows by PGT Commercial.

What's In This House Plan.

  • Floor plans are views of each floor, looking down from above. The plans show window and door locations, room dimensions and plumbing fixture locations.
  • Exterior elevations are flat views of the outside of the house, looking at the front, left, rear and right.
  • Building sections show cutaway views of the home structure.
  • The foundation plan shows the location of footings and concrete slabs.
  • Floor & roof layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
  • The wall section is a detailed view showing how the walls are assembled.
  • The electrical plan shows the outlets, switches, lights and fans on the floor plan.
  • Construction notes and typical details.

For more information, view a Sample Set of Drawings.



Included File Formats.

  • PDF is a digital version of the plans which is easy to view and print. It contains all the pages of the plans and shows colors and shadows. The PDF can be printed on any printer or paper size, but most plans print best on 36″ x 24″ paper.
  • CAD files in AutoCAD 2010 format. We can export other AutoCAD formats if needed. These drawings can be opened in AutoCAD or many other popular CAD programs.
  • Sketchup Pro. The Sketchup Pro file can be opened in Layout, which is part of the Sketchup Pro bundle. It is the format that we use to create the drawings. It includes a copy of the Sketchup 3D model.
