Limestone House Plan

$3,421

Download PDF, CAD & Sketchup digital plan files. Read more about what’s included.

20% off when you join our mailing list.

SKU: THP049 Category: Tags: ,

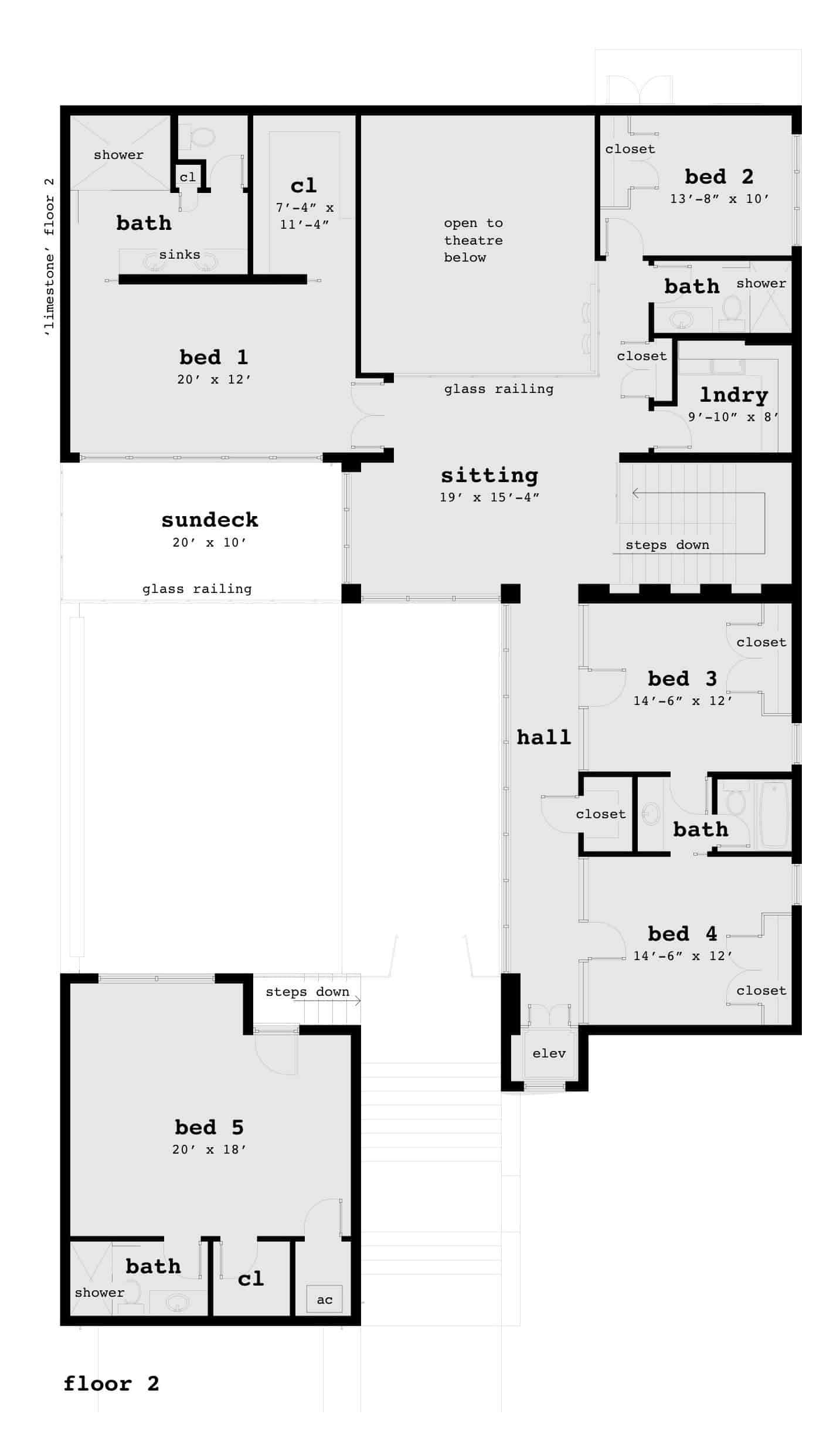

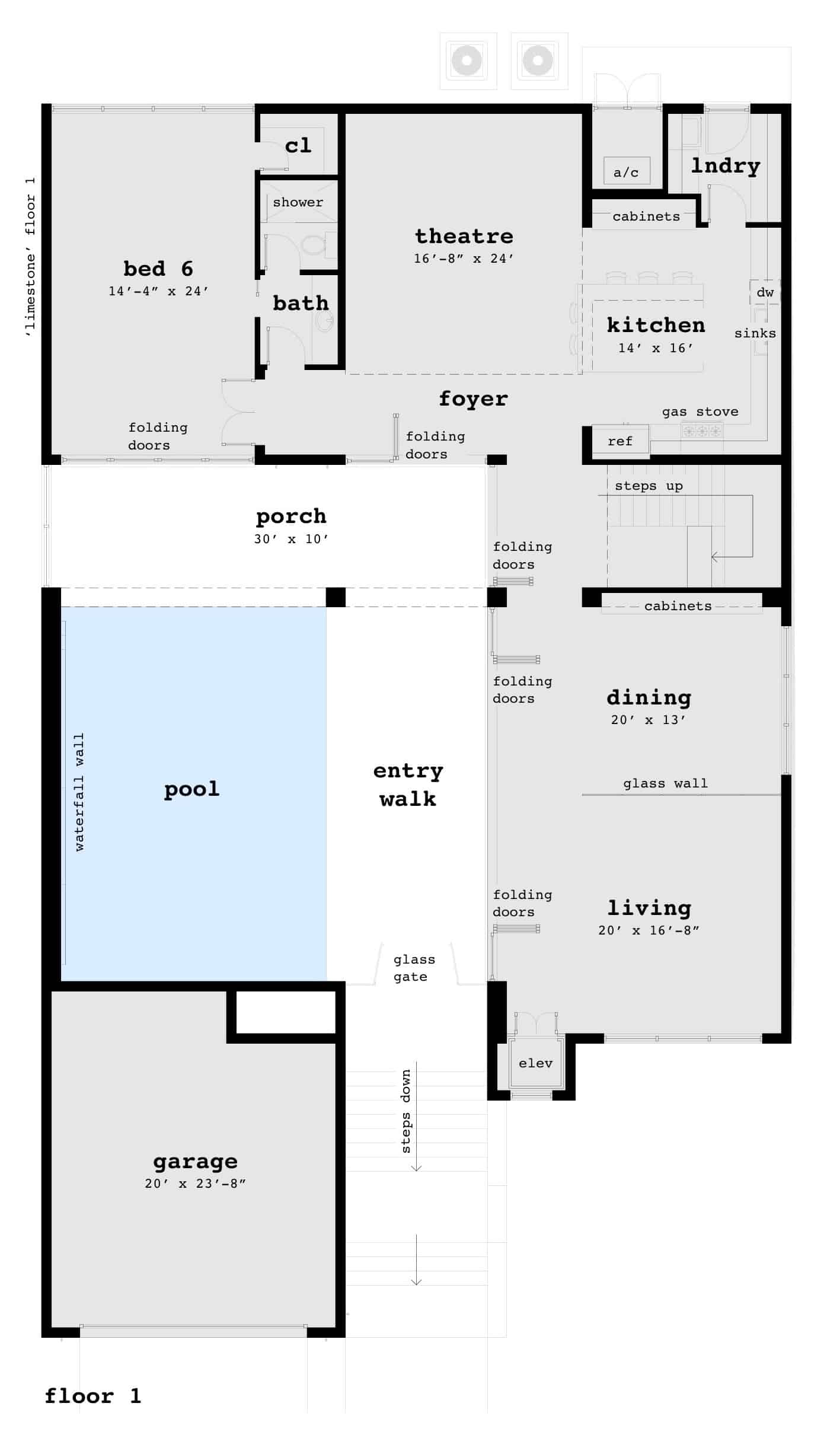

The interior of the home faces the pool courtyard which is filled with the sound of the waterfall wall. The family theater is connected with the kitchen and provides a two story movie projection space. Living and dining are divided by a textured glass wall, and open to the pool with folding doors. The upper floor houses 5 bedroom suites, including one over the garage which could be a home office or artist’s gallery.

Designed to incorporate floating stairs and glass railings as manufactured by View Rail.

View Construction Photos of the Limestone House Plan from around the world.

Verdigris House Plan is a smaller version of this plan.

File Formats

PDF, DWG (Cad File), LAYOUT (Sketchup Pro Layout File), SKP (Sketchup 3D Model)

Beds

Baths

Width (feet)

Depth (feet)

87

Height (feet)

Ceilings

8 foot ceilings in suite 5, 9 foot 4 inch ceilings throughout

Parking

2 Parking Spaces

Construction

The foundation is a concrete stem wall, The floor is a concrete slab., The exterior walls are 2×6 wood framing., The upper floor is pre-engineered wood trusses., The roof is pre-engineered wood trusses.

Doors & Windows

Modern doors and windows

Exterior Finishes

Membrane Roofing System, Stucco

Mechanical

Traditional split air-conditioning system

Styles

,

Features

,

Living Area (sq. ft.)

Parking Area (sq. ft.)

505

Under Roof Area (sq. ft.)

5575

Collections

Brand

Tyree House Plans

Add Readable Reverse (Flip Plan)

Reverse this house plan by flipping the plan left-to-right. All text will remain readable on the reversed plans.

$300

Need More Customization?

We look forward to giving your project the attention and time that it deserves, and perfecting your dream house plans. Learn about the 4-step process for customizing our plans.

Reviews

  1. Dan Tyree at Tyree House Plans

    We recommend talking with at least 3 builders in the build area to get price quotes for construction.

  2. Dan Tyree at Tyree House Plans

    Yes, this house can be built in Florida. For central or southern Florida, we can convert the plan to concrete block construction. Our customize department can provide a quote for this conversion.
