Lyman House Plan
What’s in a House Plan? Read more.

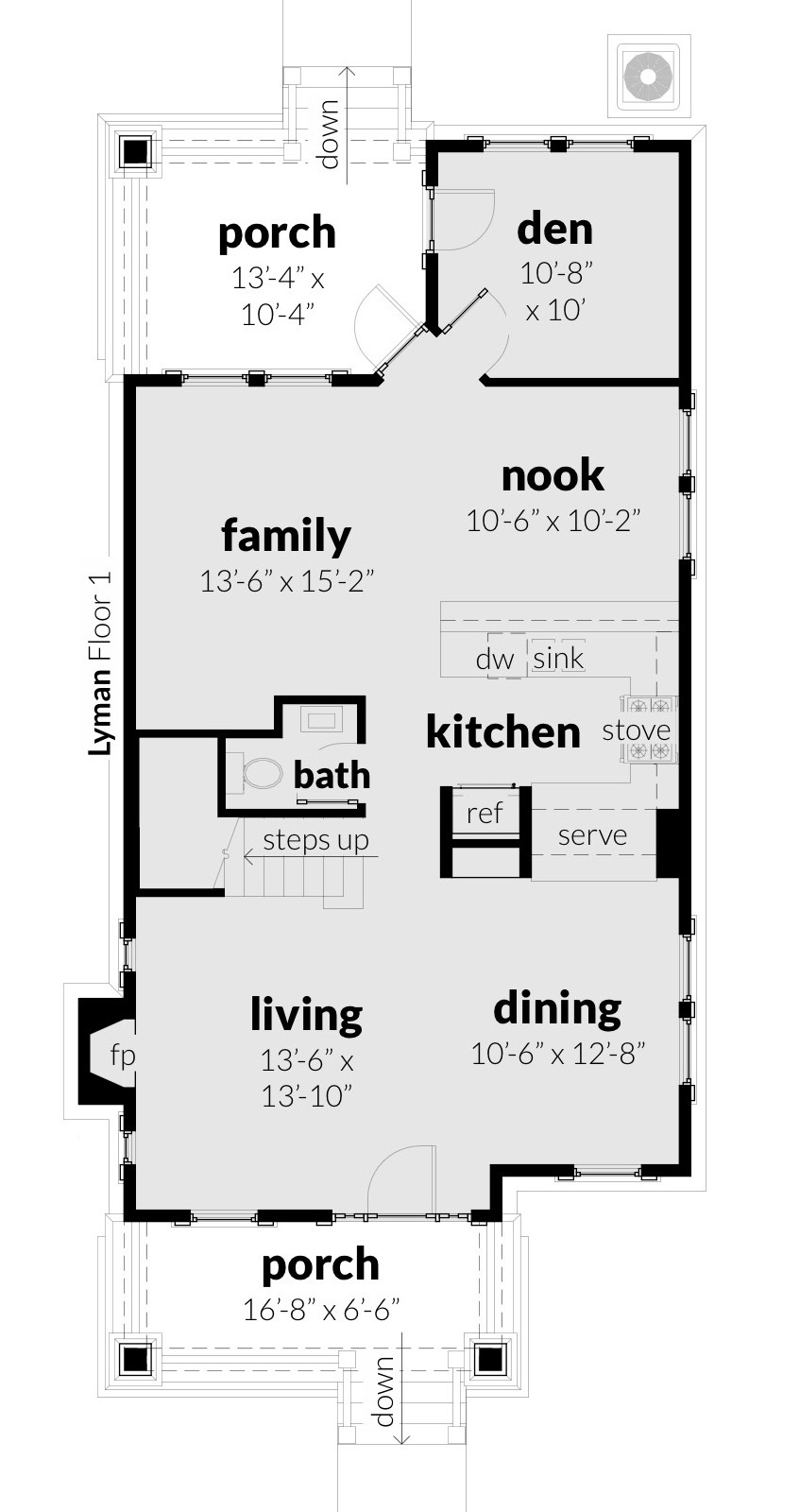

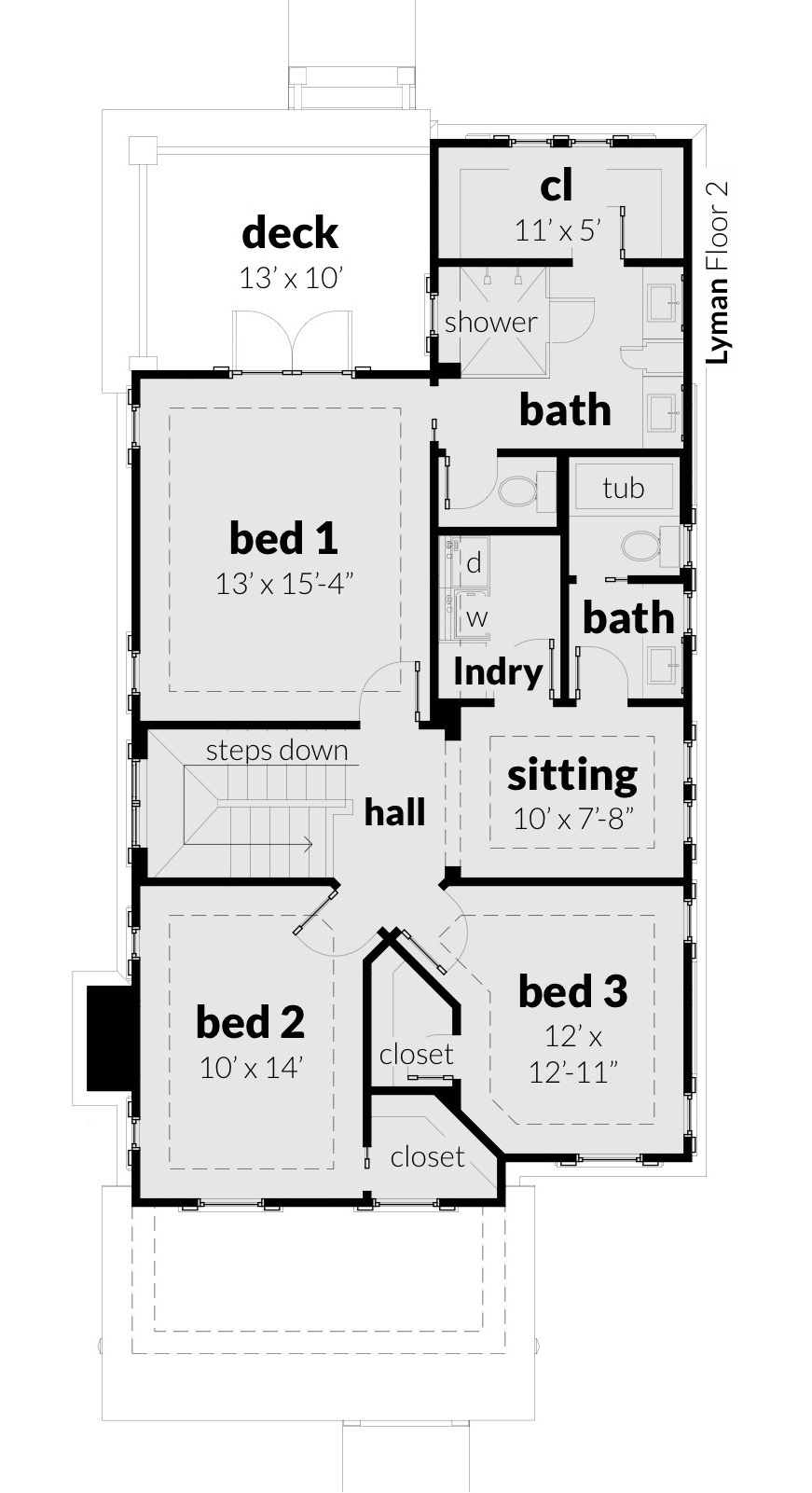

Lyman is a craftsman home designed for a small lot. It provides all the comforts of a larger home in a small, comfortable space. The downstairs is an open plan with separate living, dining, family and breakfast nook. The living features a fireplace and is open to the stairwell. The dining has a built-in china display cabinet. The family room and kitchen are designed for entertaining. Front and back porches provide space for outdoor living. Upstairs, the master suite is comfortable with access to the private deck, modern bathroom with soaking tub, and walk-in closet. The secondary bedrooms each have walk-in closets.
Comstock House Plan is a smaller version of this plan.
PDF, DWG (Cad File), LAYOUT (Sketchup Pro Layout File), SKP (Sketchup 3D Model)
20 feet at garage, 54 feet
9 foot ceilings at the second floor, 9 foot 4 inch ceilings at first floor

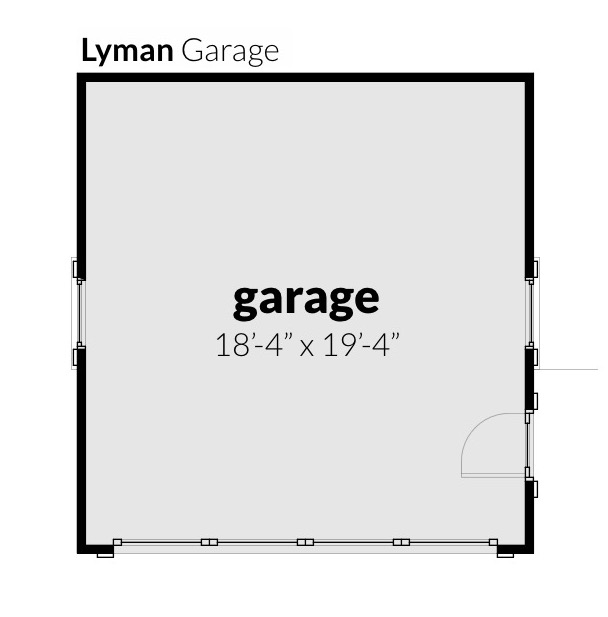

2 Parking Spaces
The foundation is a concrete stem wall, The floor is a concrete slab., The exterior walls are 2×6 wood framing., The exterior walls are 2×4 wood framing., The upper floor is pre-engineered wood trusses., The roof is pre-engineered wood trusses.
|Doors & Windows||
Traditional doors and windows
Asphalt Roofing Shingles, Decorative Window Trim, Stucco
Traditional split air-conditioning system
|Living Area (sq. ft.)|
|Parking Area (sq. ft.)||
|Under Roof Area (sq. ft.)||
