Cypress Cove House Plan


Living Space: 3304 Square Feet
Bedrooms: 4 Bedrooms
Full Baths: 4 Baths
Parking: 3 Parking Spaces
Construction: Wood Framing
Files Included: PDF, CAD (.dwg), Sketchup Pro (.layout)
SKU: THP150 Categories: , Tag:

The Cypress Cove House Plan.

Cypress Cove is designed so that the master suite, living, dining and detached office all have beautiful views toward the rear. A semi-private garage courtyard provides privacy and easy access from the garage to the kitchen. Four bedroom suites compliment the open entertaining space in the center of the home.


3304 Square Feet

Living 3304 s.f.
Porches 914 s.f.
Garage 900 s.f.
Under Roof 5118 s.f.

4 Bedrooms

4 Baths

3 Parking Spaces

10 Foot Ceilings

15′ ceilings at living, dining and kitchen
11′ ceilings at garage

House Size

91′ wide
90′ deep
21′ high

First Floor

Foundation & Floor

The foundation is designed with a concrete slab on grade. The second floor is pre-engineered wood trusses.

Wall Structures

The exterior walls are 2x8 wood framing.

Roof Structure

The roof is a membrane waterproof system, plywood deck, and pre-engineered wood trusses.

Exterior Finishes

The exterior is finished with stucco and vertical wood.

Doors & Windows

Modern doors and windows by PGT Commercial.

What's In This House Plan.

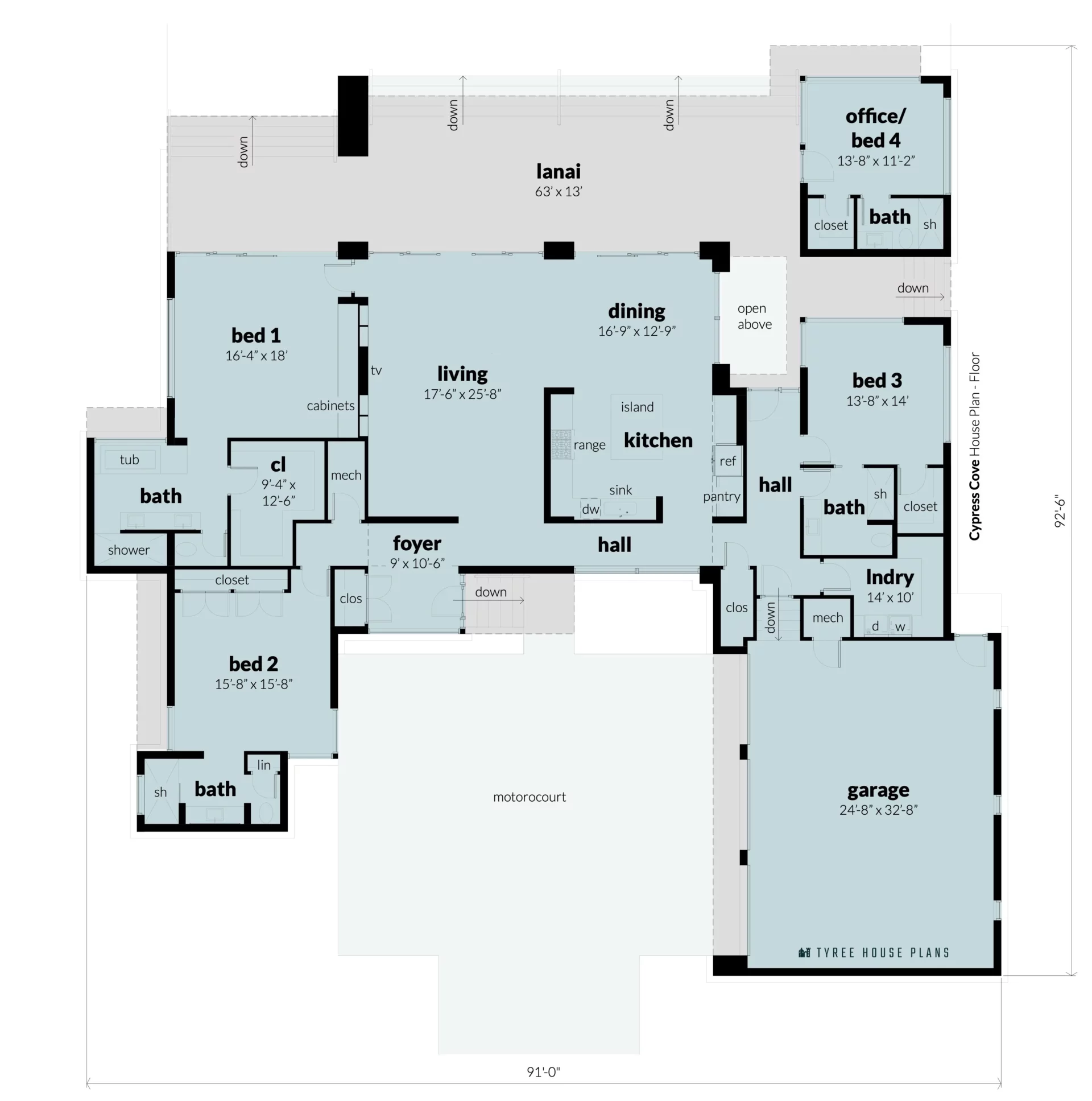

  • Floor plans are views of each floor, looking down from above. The plans show window and door locations, room dimensions and plumbing fixture locations.
  • Exterior elevations are flat views of the outside of the house, looking at the front, left, rear and right.
  • Building sections show cutaway views of the home structure.
  • The foundation plan shows the location of footings and concrete slabs.
  • Floor & roof layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
  • The wall section is a detailed view showing how the walls are assembled.
  • The electrical plan shows the outlets, switches, lights and fans on the floor plan.
  • Construction notes and typical details.

For more information, view a Sample Set of Drawings.


Included File Formats.

  • PDF is a digital version of the plans which is easy to view and print. It contains all the pages of the plans and shows colors and shadows. The PDF can be printed on any printer or paper size, but most plans print best on 36″ x 24″ paper.
  • CAD files in AutoCAD 2010 format. We can export other AutoCAD formats if needed. These drawings can be opened in AutoCAD or many other popular CAD programs.
  • Sketchup Pro. The Sketchup Pro file can be opened in Layout, which is part of the Sketchup Pro bundle. It is the format that we use to create the drawings. It includes a copy of the Sketchup 3D model.
