Declan Castle Plan

Left - Davis Castle by Tyree House Plans
(3 customer reviews)
9465 Square Feet Living


Declan Castle Plan

A seven bedroom castle with dramatic interior courtyard and two carriage houses.

The Declan Castle is an extraordinary castle plan that is designed to be set on a hillside. The Declan Castle is extraordinary because of the accessibility from three levels of the ground, making this an intricately fabulous castle.

There are seven luxurious suites that meet a variety of needs. One central staircase and elevator give a simplistic approach for the owners of the castle. There is a set of three car garages that also have rooms above. One room is a suite with a kitchen and the other room is a large office with a half bath.

There are multiple watches or walkways that give the owners the opportunity to see magnificent views of the property from all sides of the Declan Castle. There is also a spiral staircase in the corner of the north and east watches.

Show off your love for the Declan Castle Plan! Buy the 18″ x 24″ Wall Poster.

Highlights of The Declan Castle:

  • Three ground levels
  • Seven suites
  • Three half baths
  • Main kitchen
  • Gathering kitchen
  • Suite kitchen
  • Hearth room
  • Sitting room
  • Living room
  • Dining room
  • Office
  • Watches and colonnades
  • Hidden mechanical room
  • Separate dish room
  • two laundry rooms
  • canine area located in main laundry room

Floor One

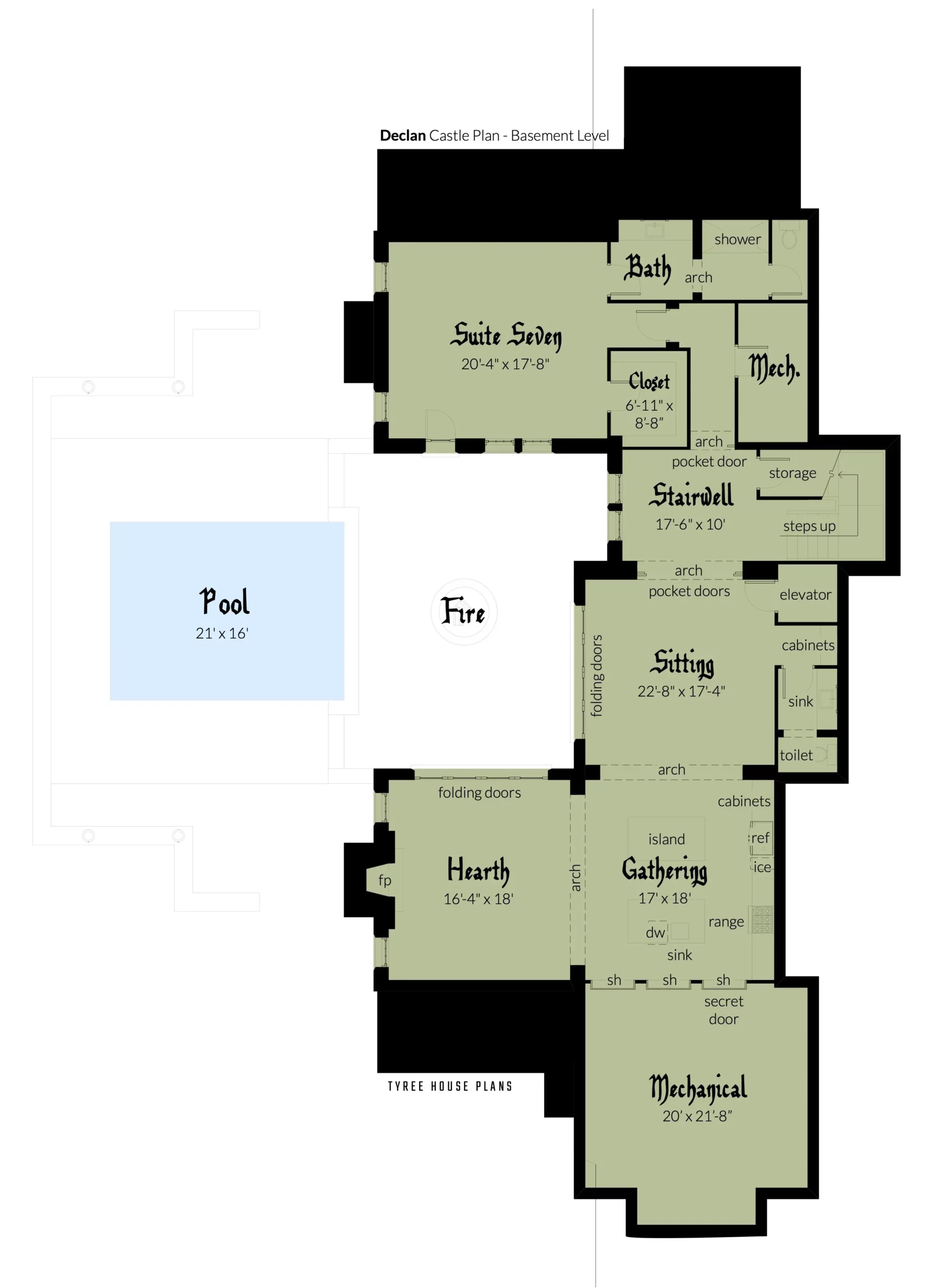

Basement - Declan Castle Plan

Floor Two

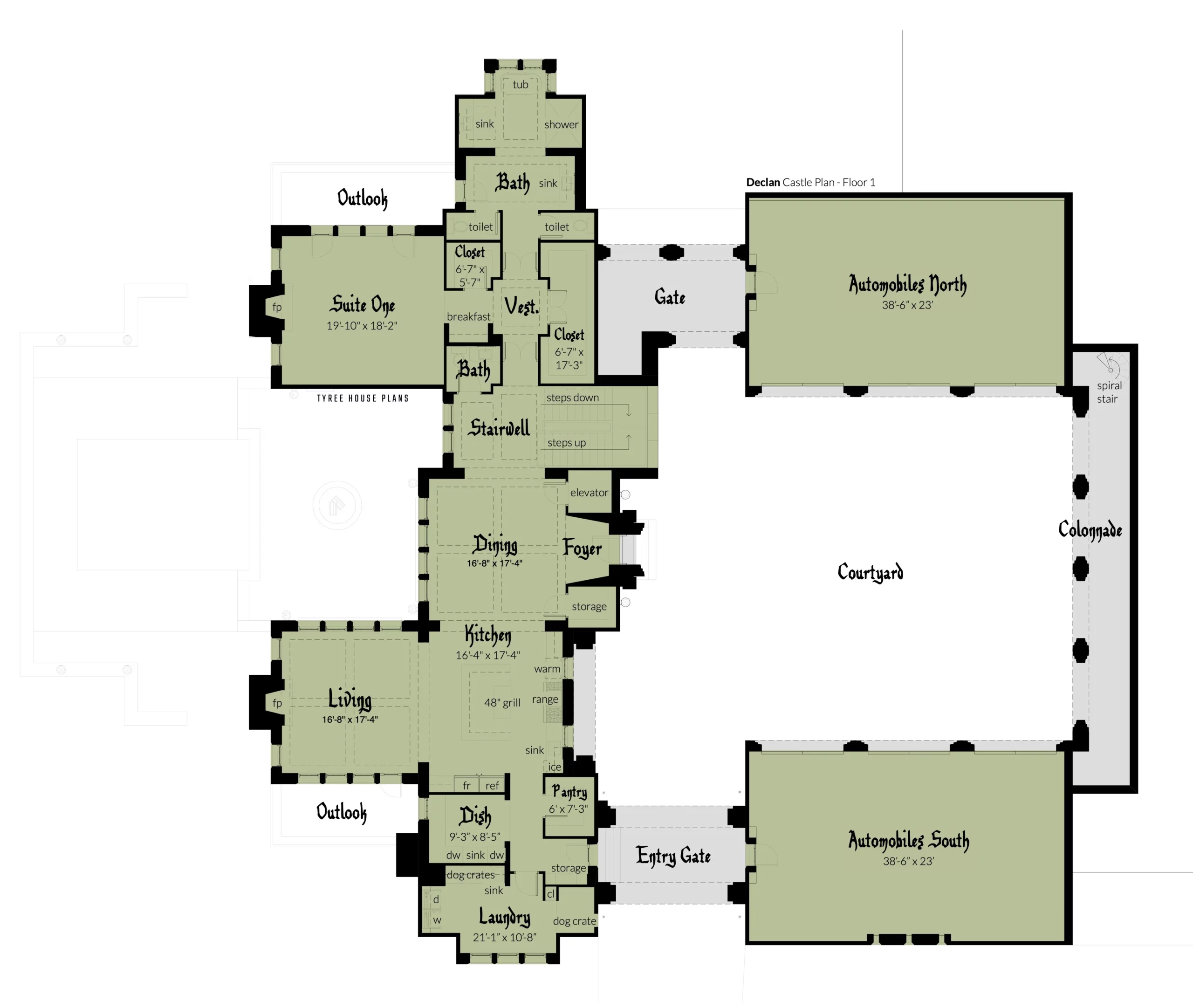

Floor 1 - Declan Castle Plan

Floor Three

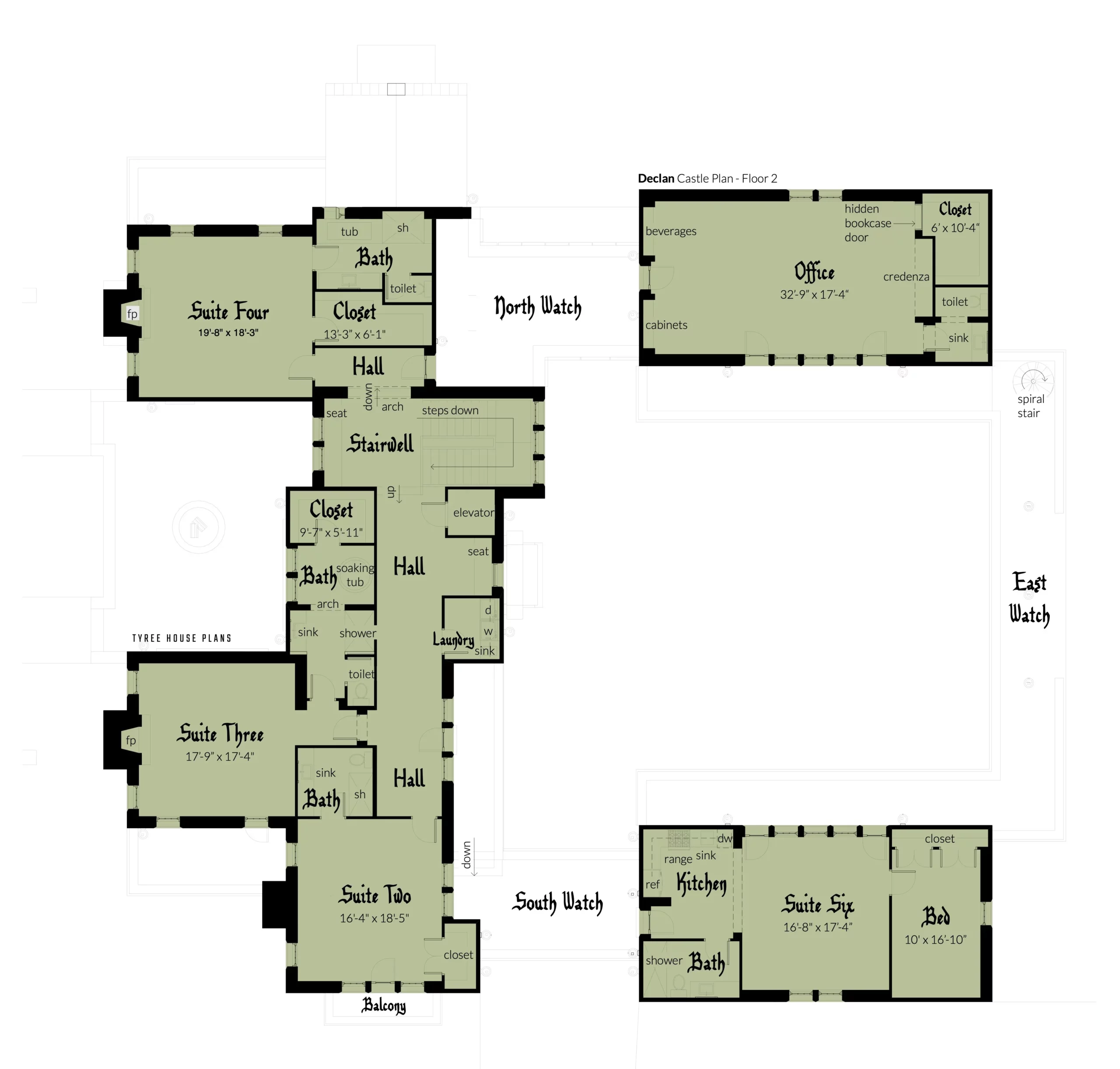

Floor 2 - Declan Castle Plan

For a smaller version of this castle, check out Duncan Castle Plan.


File Formats

PDF, DWG (Cad File), LAYOUT (Sketchup Pro Layout File), SKP (Sketchup 3D Model)




Width (feet)


111 feet



10 foot ceilings at the second floor, 12 foot ceilings at the master, 14 foot ceilings at the first floor


6 Parking Spaces


The basement walls are poured concrete., The exterior walls are 2×6 wood framing, with an interior wall to provide extra wall thickness., The foundation is a concrete stem wall, The floor is a concrete slab., The upper floor is pre-engineered wood trusses., The roof is pre-engineered wood trusses.

Doors & Windows

Traditional doors and windows

Exterior Finishes

Slate Roofing, Stacked Stone


Traditional split air-conditioning system


Living Area (sq. ft.)

Parking Area (sq. ft.)


Under Roof Area (sq. ft.)



, ,


SKU: THP146 Category: Tags: ,
