Deven House Plan

$1,609.00

Living Space: 2310 Square Feet
Bedrooms: 3 Bedrooms
Full Baths: 2 Baths
Half Baths: 1 Half Bath
Construction: Wood Framing
Files Included: PDF, CAD (.dwg), Sketchup Pro (.layout)
SKU: THP069 Categories: , Tags: , , ,

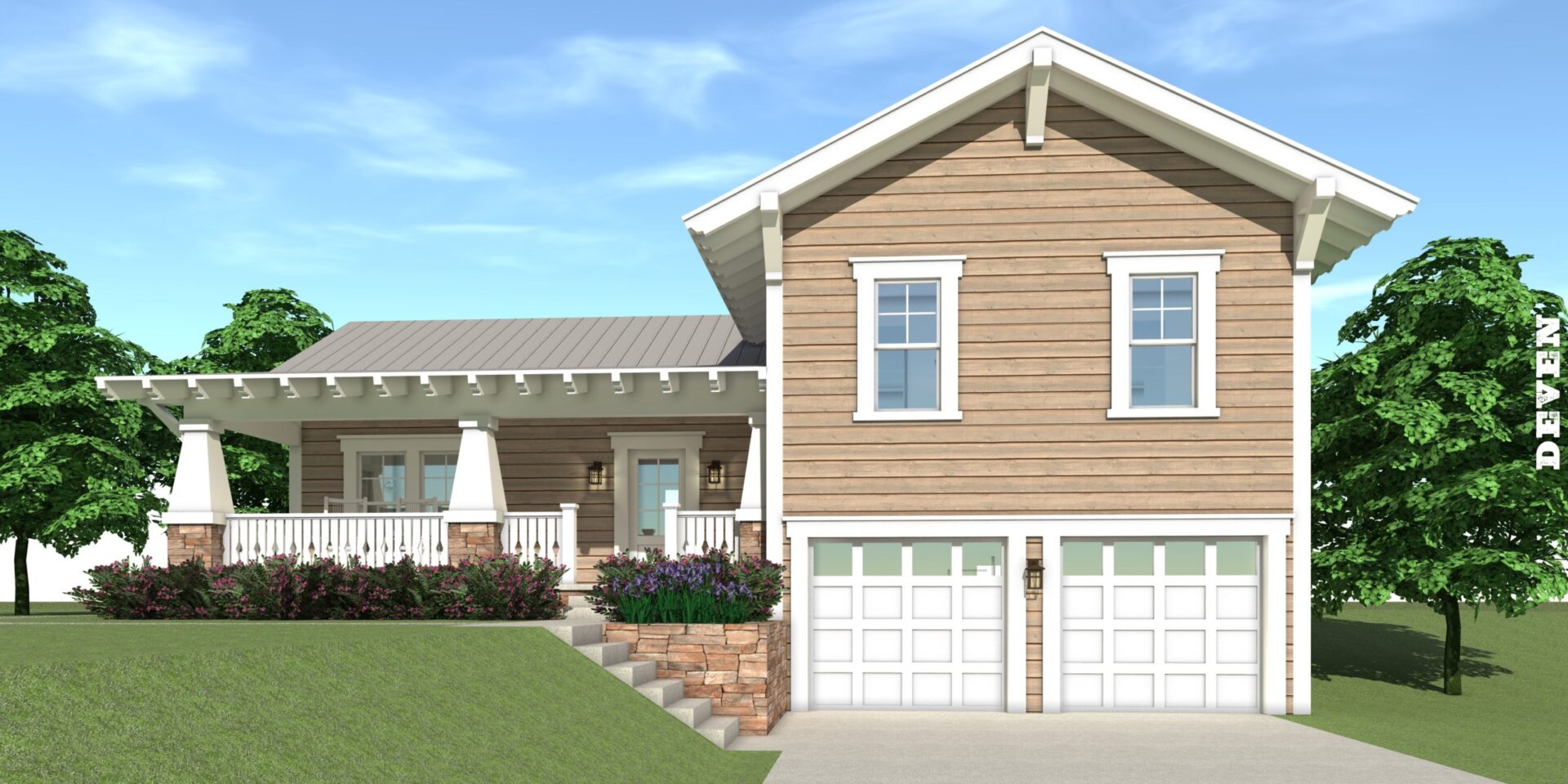

The Deven House Plan.

Two bedrooms surround the entry foyer and hallway. Beyond, the home opens to an ornate stairway, living and kitchen. The kitchen and living room open to the porch through two sets of french doors. Upstairs, the third bedroom has spectacular views and a walkout sundeck.




2310 Square Feet

First Floor 1278 s.f.
Second Floor 1032 s.f.
Porches 468 s.f.
Garage 440 s.f.
Under Roof 3218 s.f.


3 Bedrooms


3 Baths

2 Full Baths
1 Half Bath




2 Parking Spaces


9 Foot Ceilings


House Size

48′ wide
59′ deep
27′ high

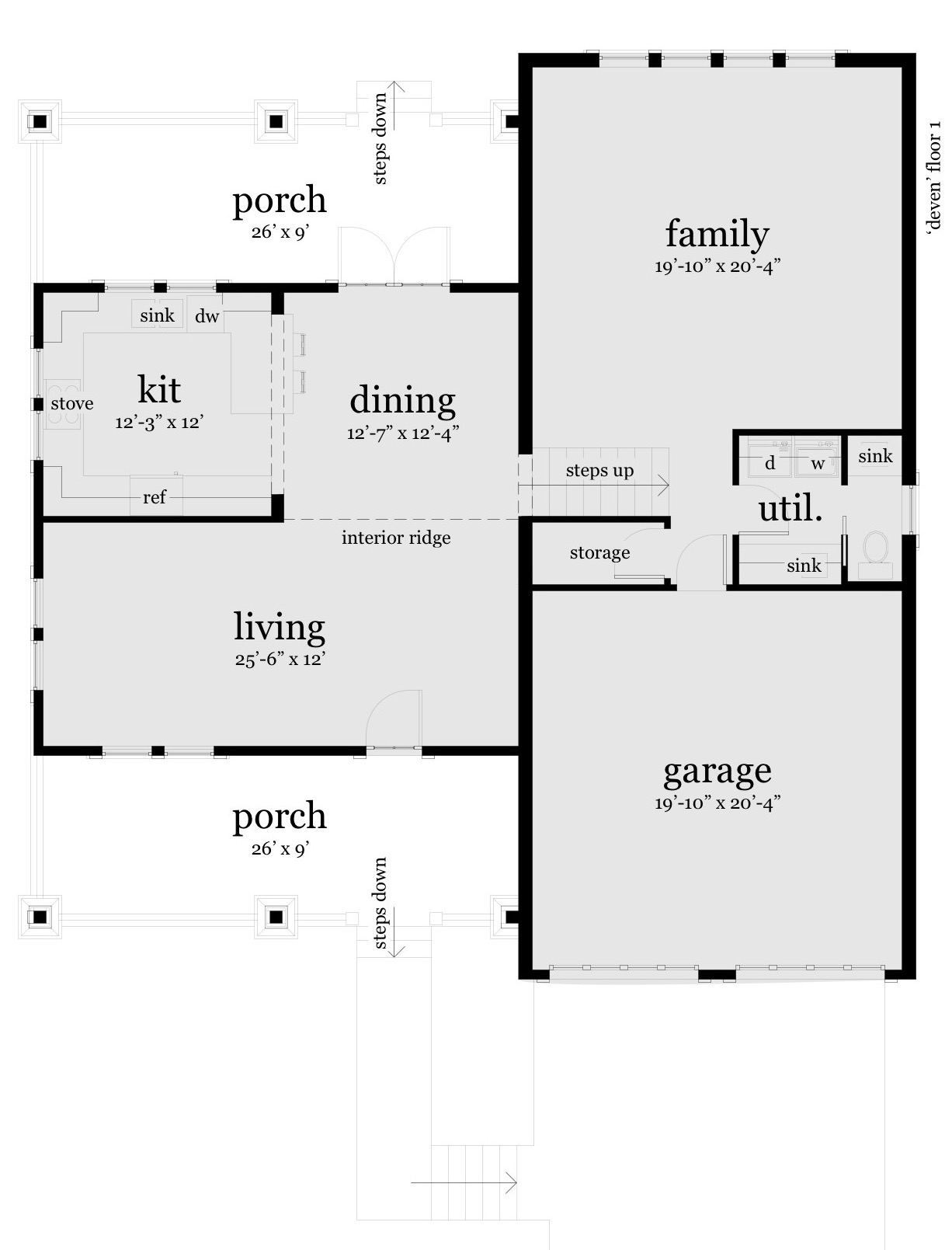

First Floor

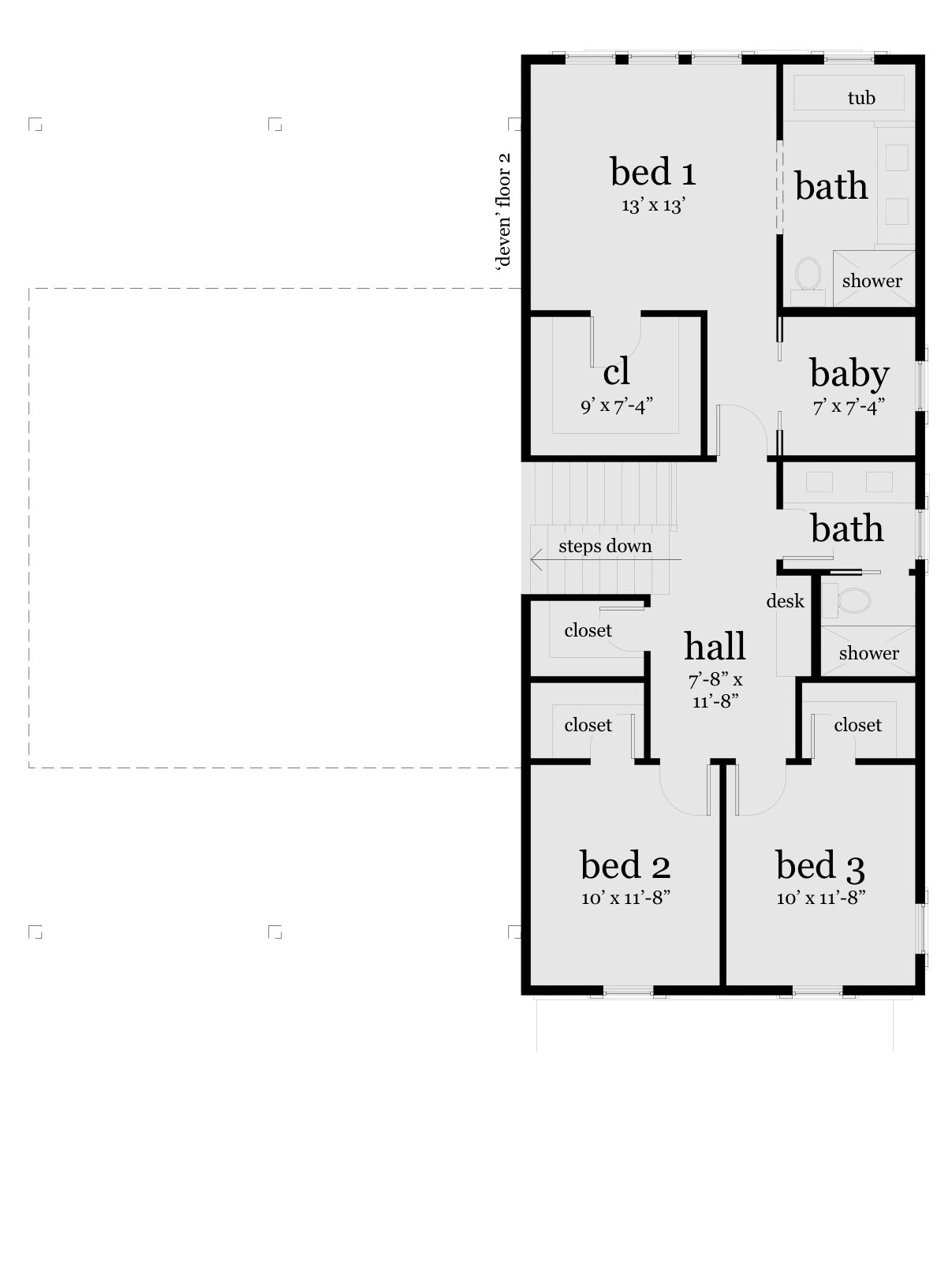

Second Floor


Foundation & Floor

The foundation is designed with a concrete slab on grade. The second floor is pre-engineered wood trusses.


Wall Structures

The exterior walls are 2x6 wood framing.


Roof Structure

The roof is standing-seam metal over a plywood deck, and pre-engineered wood trusses.


Exterior Finishes

The exterior is finished with lap siding.

What's In This House Plan.

  • Floor plans are views of each floor, looking down from above. The plans show window and door locations, room dimensions and plumbing fixture locations.
  • Exterior elevations are flat views of the outside of the house, looking at the front, left, rear and right.
  • Building sections show cutaway views of the home structure.
  • The foundation plan shows the location of footings and concrete slabs.
  • Floor & roof layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
  • The wall section is a detailed view showing how the walls are assembled.
  • The electrical plan shows the outlets, switches, lights and fans on the floor plan.
  • Construction notes and typical details.

For more information, view a Sample Set of Drawings.



Included File Formats.

  • PDF is a digital version of the plans which is easy to view and print. It contains all the pages of the plans and shows colors and shadows. The PDF can be printed on any printer or paper size, but most plans print best on 36″ x 24″ paper.
  • CAD files in AutoCAD 2010 format. We can export other AutoCAD formats if needed. These drawings can be opened in AutoCAD or many other popular CAD programs.
  • Sketchup Pro. The Sketchup Pro file can be opened in Layout, which is part of the Sketchup Pro bundle. It is the format that we use to create the drawings. It includes a copy of the Sketchup 3D model.
