Blake House Plan


Living Space: 1886 Square Feet
Bedrooms: 3 Bedrooms
Full Baths: 2 Baths
Half Baths: 1 Half Bath
Parking: 2 Parking Spaces
Construction: Wood Framing
Files Included: PDF, CAD (.dwg), Sketchup Pro (.layout)
SKU: THP055 Categories: ,

Blake House Plan.

 Designed to fit into a narrow lot. Blake features 3 bedrooms, 2.5 baths, and beautiful craftsman styling. Also includes plans for a matching 2 car garage.


1886 Square Feet

First Floor 943 s.f.
Second Floor 943 s.f.
Porches 262 s.f.
Garage 380 s.f.
Under Roof 2528 s.f.

3 Bedrooms

3 Baths

2 full baths, 1 half bath

2 Parking Spaces

9 Foot Ceilings

House Size

27′ wide
62′ deep (without stairs)
30′ high

Garage Size

19′ wide
20′ deep
17′ high

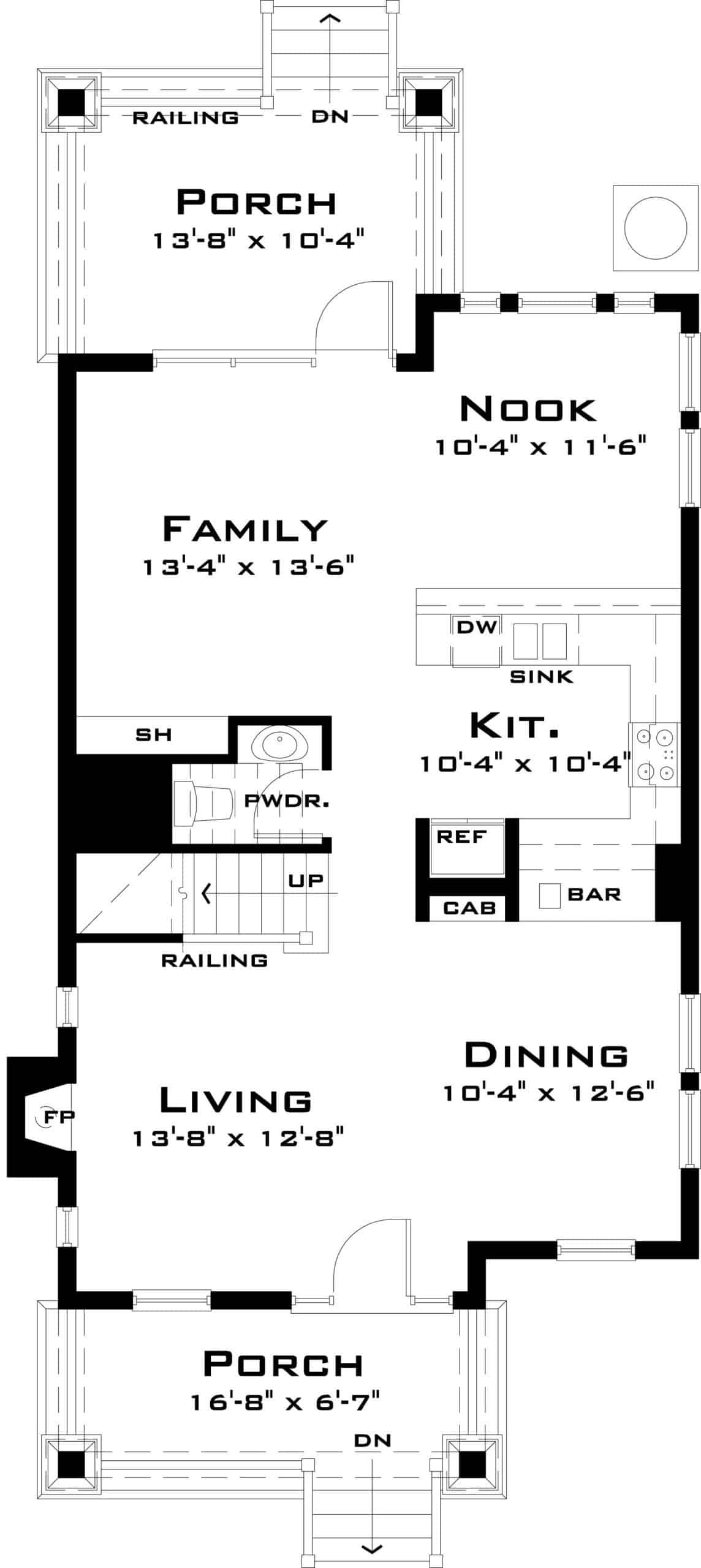

First Floor

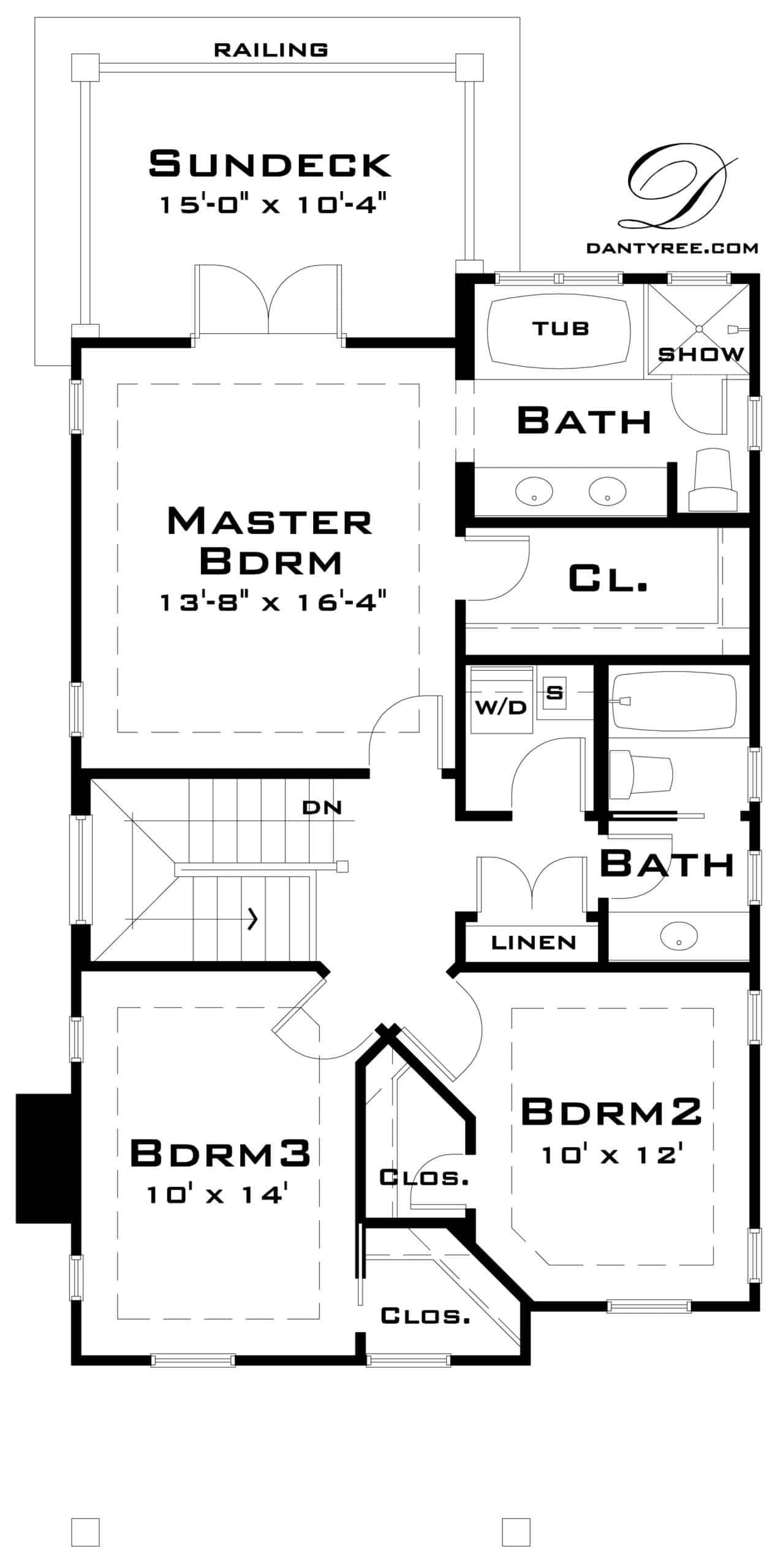

Second Floor

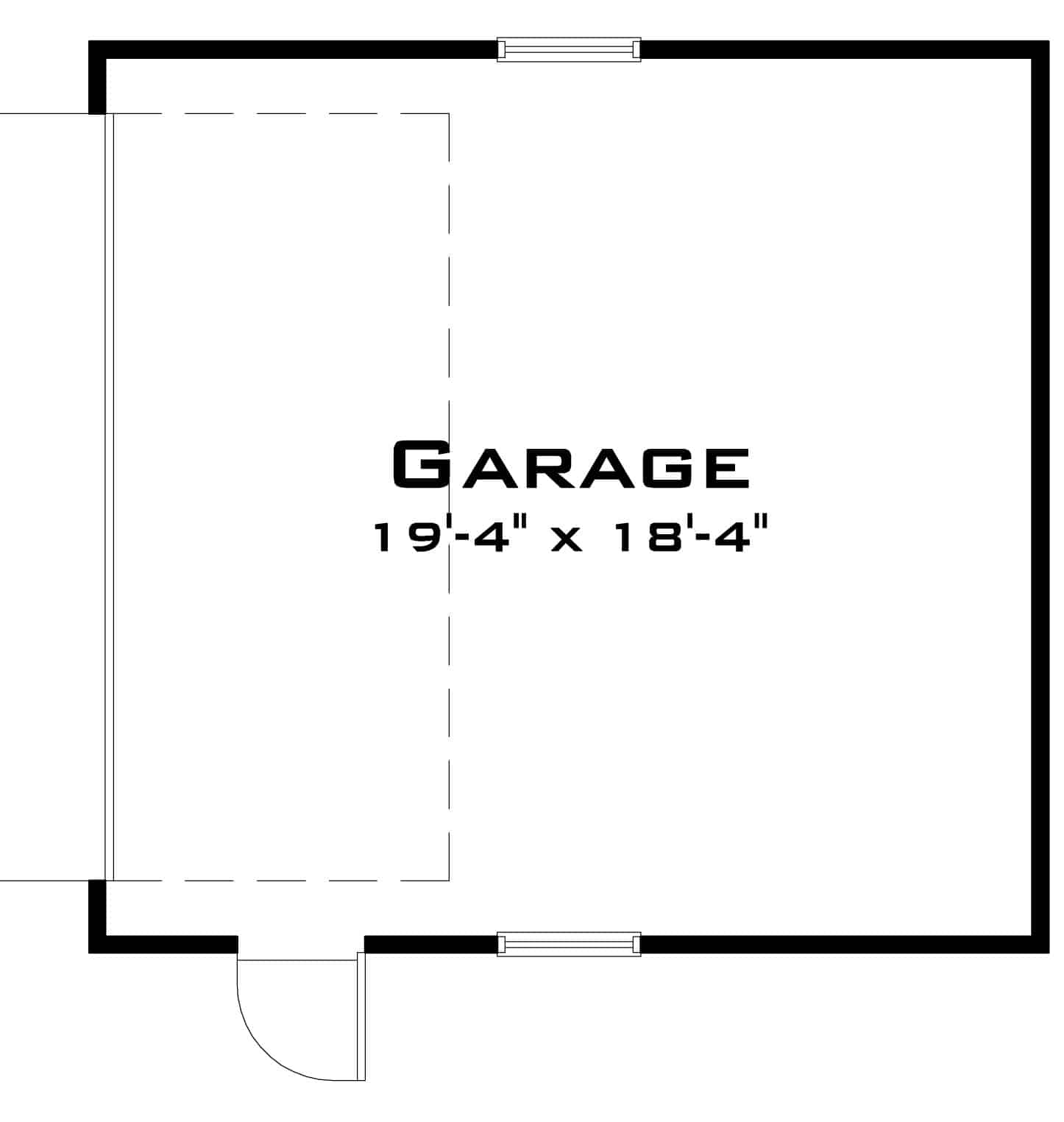

Garage Floor Plan

Foundation & Floor

The foundation is designed with a concrete slab on grade. The second floor is pre-engineered wood trusses.

Wall Structures

The exterior walls are 2x6 and 2x4 wood framing.

Roof Structure

The roof is shingles over a plywood deck, and pre-engineered wood trusses at a 7:12 pitch.

Exterior Finishes

The exterior is finished with stucco and white moldings.

What's In This House Plan.

  • Floor plans are views of each floor, looking down from above. The plans show window and door locations, room dimensions and plumbing fixture locations.
  • Exterior elevations are flat views of the outside of the house, looking at the front, left, rear and right.
  • Building sections show cutaway views of the home structure.
  • The foundation plan shows the location of footings and concrete slabs.
  • Floor & roof layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
  • The wall section is a detailed view showing how the walls are assembled.
  • The electrical plan shows the outlets, switches, lights and fans on the floor plan.
  • Construction notes and typical details.

For more information, view a Sample Set of Drawings.


Included File Formats.

  • PDF is a digital version of the plans which is easy to view and print. It contains all the pages of the plans and shows colors and shadows. The PDF can be printed on any printer or paper size, but most plans print best on 36″ x 24″ paper.
  • CAD files in AutoCAD 2010 format. We can export other AutoCAD formats if needed. These drawings can be opened in AutoCAD or many other popular CAD programs.
  • Sketchup Pro. The Sketchup Pro file can be opened in Layout, which is part of the Sketchup Pro bundle. It is the format that we use to create the drawings. It includes a copy of the Sketchup 3D model.
