Sagebrush House Plan
What’s in a House Plan? Read more.

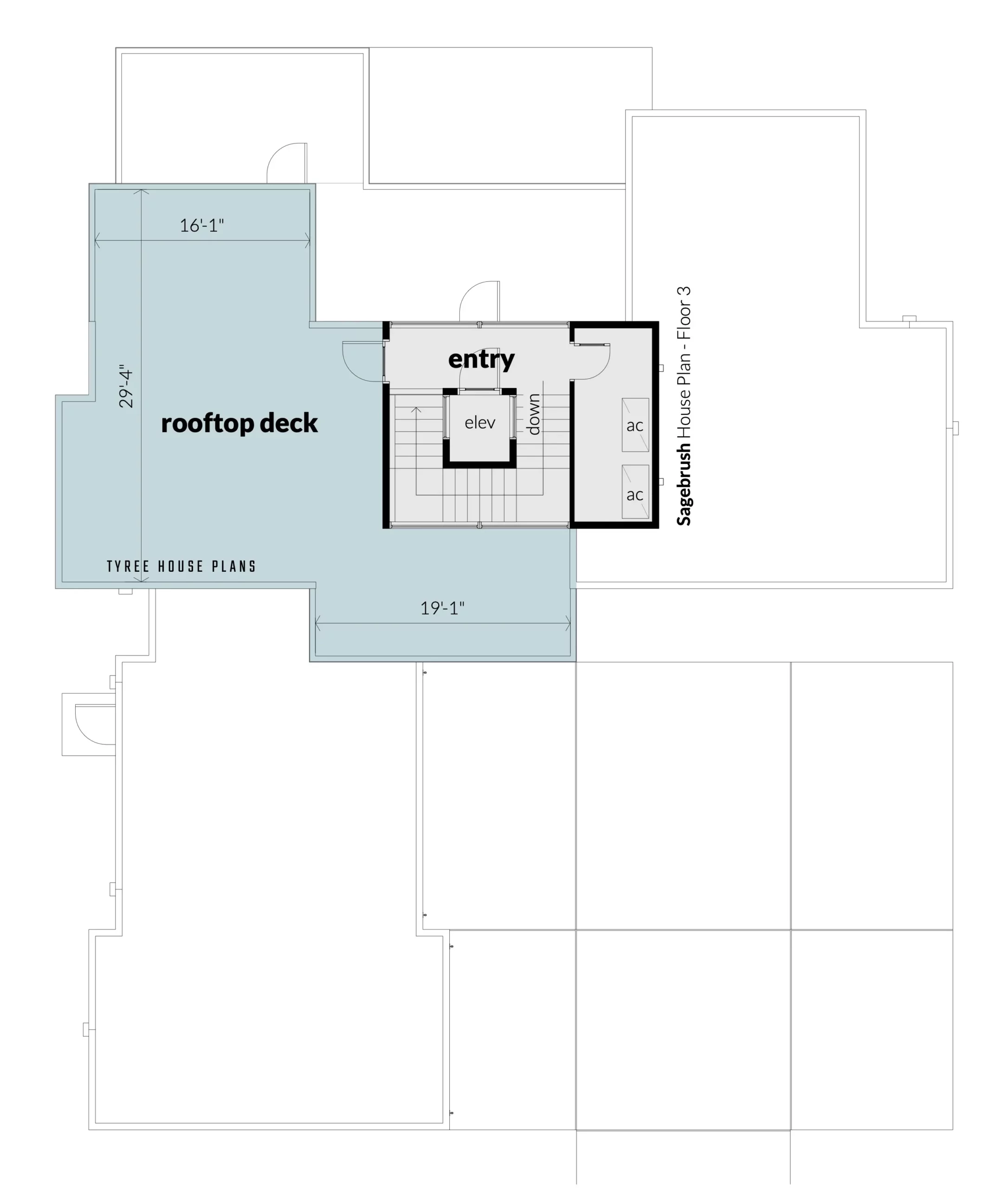

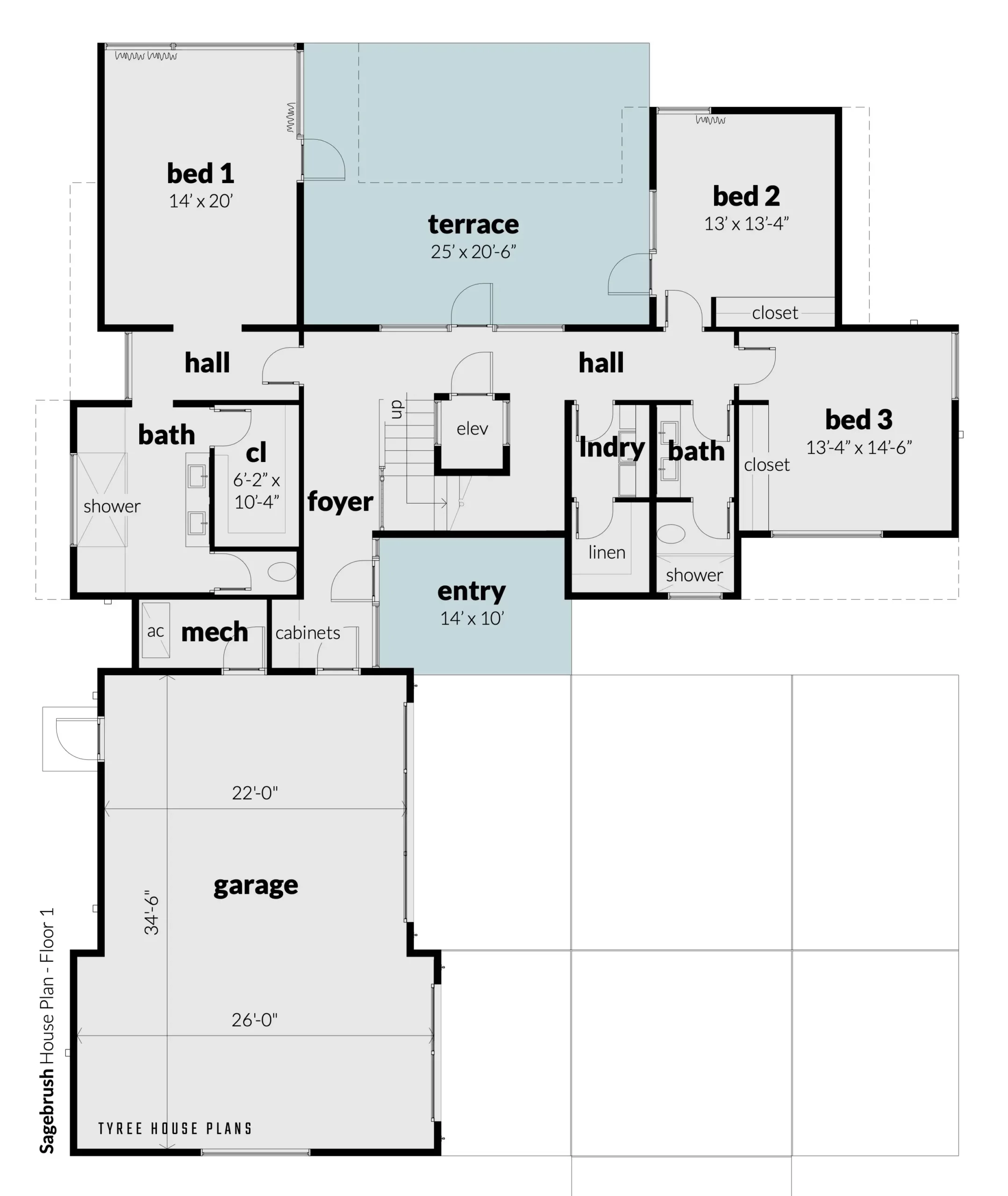

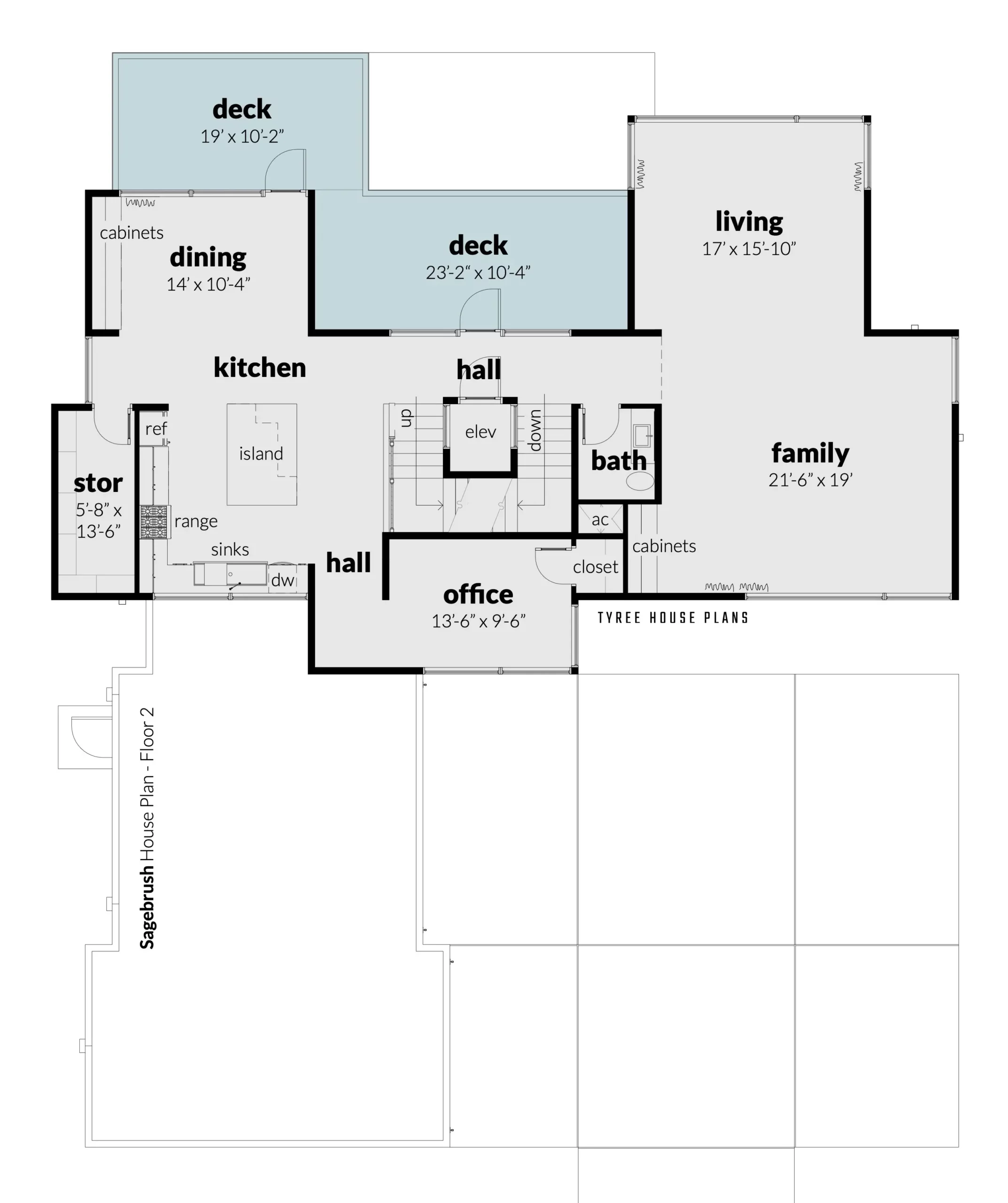

Living in the Sagebrush is unique. All the living spaces are elevated so that you can have the amazing views all day long, while cooking, dining and relaxing. The bedrooms are on the lower level. The observation terrace is on the third level, and has a glass elevator for easy access to all levels.
This house is designed to incorporate floating stairs and glass railings as manufactured by View Rail.
PDF, DWG (Cad File), LAYOUT (Sketchup Pro Layout File), SKP (Sketchup 3D Model)
8 foot ceilings at the third floor, 10 foot ceilings at the first floor, 10 foot ceilings at the second floor, 12 foot ceilings at living, 12 foot ceilings at family
3 Parking Spaces
The foundation is a concrete stem wall, The floor is a concrete slab., The exterior walls are 2×6 wood framing., The upper floor is pre-engineered wood trusses., The roof is pre-engineered wood trusses.
|Doors & Windows||
Modern doors and windows
Traditional split air-conditioning system
|Living Area (sq. ft.)||
|Parking Area (sq. ft.)||
|Under Roof Area (sq. ft.)||
